TL;DR:
- Cibes home lift solutions offer 41 size options, which gives homeowners more flexibility than a one-size-fits-all lift approach.
- The smallest listed sizes start from 1000 x 900 mm finished size or shaft size, depending on model. That is close to 1 sqm.
- Screw-driven technology is designed to keep the lift footprint compact while giving more usable space inside.
- Cabin or platform size shows usable space inside, but finished, shaft, and cut-out sizes show what the home must accommodate.
Why does lift size matter so much in UAE homes?
One of the first questions homeowners ask is simple: Will a lift actually fit in my home?
That question is even more important in the UAE. Many villas were not originally planned around a home lift. Some homes have a stair void. Some have a corner that might work. Some have a prepared shaft. Some are already finished and lived in. So, the real problem is not just choosing a lift model. It is choosing a lift size that matches the space, the family, and the layout.
For homeowners still comparing the basics, the home lift guide for UAE homeowners is a useful starting point because it explains lift types, planning questions, and how different home lift concepts work in villas.
What does “41 sizes” actually mean?
It means there is a much wider size matrix available across the model range.
That may sound technical at first, but the homeowner benefit is very practical. More sizes means a better chance of finding a lift that fits the available space without forcing a major redesign. Instead of trying to squeeze a home into a fixed lift box, the lift can be matched more closely to the home.
In the Cibes V-Series brochure:
| Model | Type | Cabin/Platform Size | Shaft Size | Cut-out Size |
|---|---|---|---|---|
| V70 | Cabin lift | 710 × 815 mm | N/A | 1090 × 960 mm |
| V80 | Platform lift | 635 × 850 mm | 1000 × 900 mm (finished) | 1040 × 940 mm |
| V90 | Cabin lift | 710 × 815 mm | 1000 × 900 mm (shaft) | 1040 × 940 mm |
- V70 shows 41 size options, starting from a 710 x 815 mm cabin size and 1090 x 960 mm required cut-out size.
- V80 shows 41 size options, starting from a 635 x 850 mm platform size and 1000 x 900 mm finished size.
- V90 shows 41 size options, starting from a 710 x 815 mm cabin size and 1000 x 900 mm shaft size.
So, this is not only about offering “many sizes”. It is about giving homeowners more practical ways to fit a lift into the space they have.

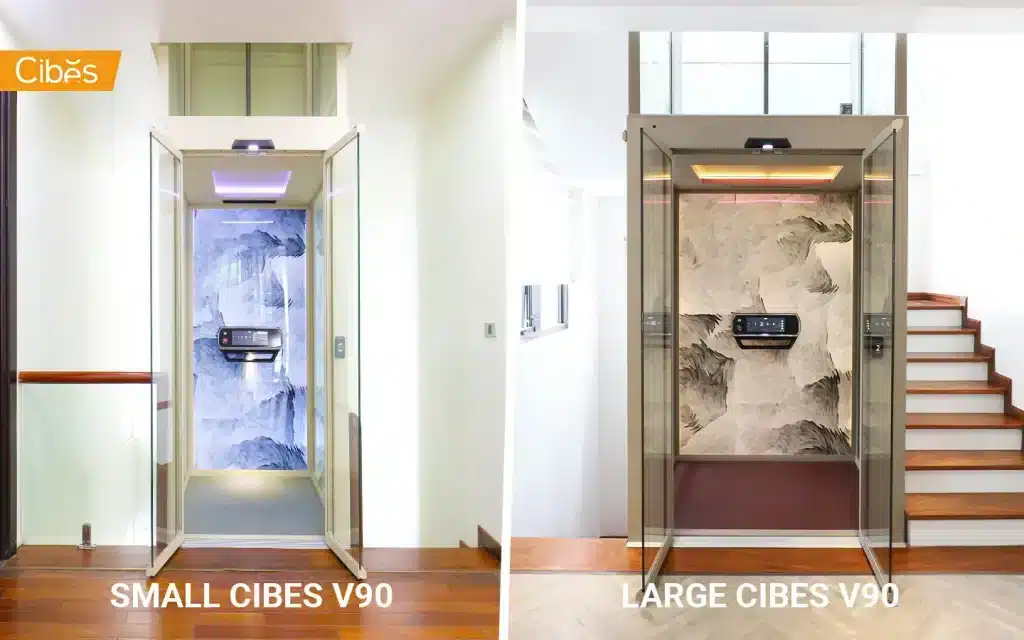

Comparison of small and large size Cibes V90 home lift both installed in middle of the staircase.
How small can a Cibes home lift be?
For homeowners searching for a small home lift in the UAE, this is usually the most important section.
The smallest listed options start from 1000 x 900 mm on the footprint side, depending on the model. That is why Cibes often talks about a lift fitting in around 1 square meter of floor space. The smallest V80 model requires 1×1 meter of floor space, which has 1000 x 900 mm finished size.
This is also why Cibes often fits well in homes where homeowners assumed a lift would be too big.
Why are 41 sizes such a useful advantage for homeowners?
A wide size range helps in several real-life situations:
1. Tight floor plans
Some villas simply do not have a large unused area. A smaller footprint may allow the lift to fit into a stair void, corner, or carefully chosen part of the floor plan.
2. Existing homes
In retrofits, the home already exists. Walls, beams, circulation paths, and furniture zones are already there. More size options improve the chance of planning around those limits.
3. Better match to daily use
Not every household needs the same cabin or platform space. Some homeowners want a compact lift for daily convenience. Others want more room for parents, children, groceries, or future accessibility.
4. Less compromise on design
If the lift footprint can be adjusted more precisely, it becomes easier to preserve interior flow, natural light, and the overall look of the space.
5. More practical model selection
A prepared concrete shaft, an open stair void, and a home with no shaft at all are very different situations. A wide size range helps the right model fit each one more naturally.
| Homeowner question | Advantage of 41 sizes | Why it matters in a UAE home |
|---|---|---|
| “My villa has limited space. Can a lift still fit?” | More compact and mid-range size choices | Helps plan for stair voids, corners, and tighter layouts |
| “The home is already built. Do all lifts need major changes?” | More flexibility to work around existing conditions | Useful for retrofit cases where structure is already fixed |
| “Do I have to choose between a tiny lift or a huge one?” | Wider spread of sizes between the smallest and largest options | Gives more practical middle-ground choices |
| “I already prepared a shaft. Can the lift match it better?” | More chance of matching shaft dimensions more closely | Reduces mismatch between the built space and the lift concept |
| “I want a lift without wasting too much space” | Better chance to balance footprint and usable interior area | Important for villas where every square meter counts |
| “Can the lift suit both current use and future needs?” | More options for compact use now and roomier use later | Helps with ageing in place and long-term planning |
This table compares the practical benefit of a wide Cibes size range against the common problem homeowners face with narrower or more fixed-size planning.
How does screw-driven technology help the space-saving concept?
The size story becomes even stronger when combined with the lift concept itself.
Cibes lift solution requires no machine room, with all components contained within the lift shaft, helping keep space impact low. It is designed without a machine room, uses screw-driven technology, and is aimed at compact spaces, with only 2500 mm headroom and a 50-100 mm pit, making it suitable for compact spaces and prepared shafts.
For a deeper explanation of the drive concept, screw-driven home lift technology is worth reading. That page also explains typical UAE benchmark ranges such as speed, stops, pit depth, and headroom for screw-driven home lifts.
Which Cibes model fits which kind of home?
This is where size should be connected to the actual home condition.
Cibes V70
- Cibes V70 is best suited for homes with a site-built or existing shaft. It is a cabin lift designed for integration within a site-built or existing lift shaft, with a compact, machine-room-less concept.
- This makes V70 a strong fit when the homeowner wants a more conventional cabin-style look and has already prepared an enclosed shaft in advance.
Cibes V80
- Cibes V80 is the model to look at when the goal is a platform lift with a panoramic, open feeling and a compact, space-saving concept. It has panoramic design, compact installation, no machine room, and 41 size options.
- This makes V80 a strong option when the home does not need a conventional enclosed cabin feel and the priority is flexibility, openness, and efficient space use.
Cibes V90
- Cibes V90 is a cabin lift with a factory-delivered panoramic shaft. It is a cabin lift with a panoramic glass shaft, with a wide range of size options and compact planning logic.
- This makes V90 especially relevant when the homeowner wants a cabin-style experience but does not already have a prepared shaft in place.
For homeowners who want to browse model range directly, platform lift models for homes and cabin lift models for homes are the most relevant category pages.

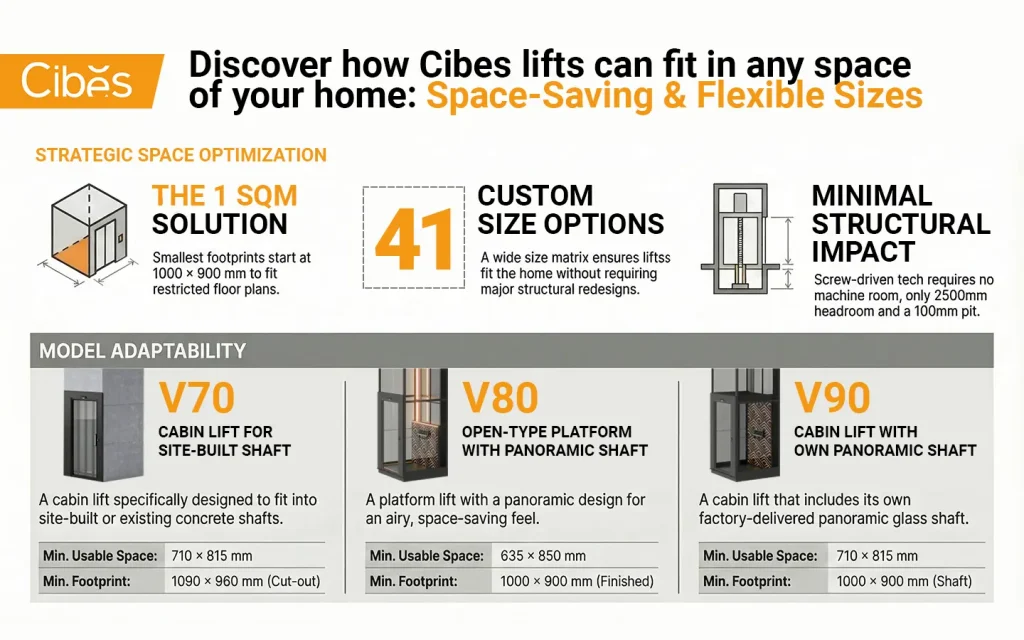

Infographic showing the smallest Cibes lift footprint, 41 size options, and which model suits different home conditions.
What is the difference between cabin size, platform size, finished size, and shaft size?
This is one of the most confusing parts for non-technical readers, so it helps to keep it simple.
- Cabin size means the internal usable area inside a cabin-style lift, such as V70 or V90.
- Platform size means the usable standing area on a platform lift, such as V80.
- Shaft size refers to the overall space needed for the shaft, especially on a model like V80 and V90 where the shaft is part of the delivered concept.
- Cut-out size refers to the structural opening needed in the slab or floor, depending on door side and configuration.
This matters because many homeowners compare the wrong dimension first. Looking only at cabin or platform size can be misleading. The full planning picture includes the cut-out size, opening requirements, and door layout too.
Can 41 sizes help reduce compromise in existing villas?
Yes, and this is where the article becomes especially useful for the UAE market.
Many homeowners in Dubai, Abu Dhabi, and other parts of the UAE are not building from zero. They are adding a lift into a completed home or planning a renovation around the current structure. In these cases, every extra size option matters more.
A wider size range can help when:
- the available area is slightly narrower than expected
- the stair void is usable, but not large
- the home has a prepared shaft that does not match a standard lift size
- the owner wants to avoid oversized structural changes
- the goal is to future-proof the home without taking over too much floor area
For many of these retrofit questions, home lift without pit and machine room is another helpful page because it explains what pit, headroom, and machine room actually mean in simple language.
How should a homeowner choose the right lift size?
The right lift size is not only about “what fits.” It is also about how the lift will be used.
A practical shortlist usually starts with these questions:
Who will use the lift?
A single user has different needs from a family with children, elderly parents, or wheelchair planning in mind.
Is the home already built?
If yes, the available space becomes one of the main decision points.
Is there already a shaft?
If yes, V70 may be a natural direction. If not, V90 may be more relevant when a cabin feel is preferred. If a platform concept suits the home better, V80 may be the more efficient path.
How important is openness or panoramic design?
Some homeowners want a more open architectural feel. Others prefer a more enclosed cabin look.
Is future accessibility part of the plan?
A size that feels “enough” today may feel tight later if mobility needs change.
Safety also needs to be part of the conversation. The EN 81-41 safety guide is useful here because it helps homeowners understand how lift categories differ and why intended use matters when choosing a lift type.
Does home lift size affect the price?
Yes. Lift size is one of several factors that can affect the final price, along with model type, shaft concept, design package, travel height, number of stops, and customization.
That does not mean the smallest size is always the “best value.” Sometimes a slightly larger and better-matched lift is the smarter long-term choice, especially in family homes or villas being future-proofed.
For budget planning, home lift price in UAE is the most relevant next step.
Why can a showroom visit help when comparing sizes?
Lift size is one of those things that is easier to understand in person than on paper.
The Cibes Dubai showroom page says visitors can test ride platform and cabin models, compare finishes, check door widths, and leave with a fit sketch, budget band, and site-measure date. That matters because two lift sizes that seem similar in a table can feel very different when standing inside them.
For homeowners who are serious about comparing fit, visit the Cibes Dubai showroom is a practical next step.
Final thought: why do 41 sizes matter so much?
Because homes are not all the same.
Some homeowners have a prepared shaft and want a clean cabin-style result. Some want a panoramic lift that becomes part of the interior. Some need the smallest possible footprint. Some are planning for parents, accessibility, or ageing in place. Some simply want a lift that fits properly without turning the house upside down.
That is why 41 sizes is not just a specification line. It is a planning advantage.
Cibes V70, V80, and V90 each offer 41 size options, and that wider size range helps solve one of the biggest homeowner concerns in the UAE: finding a lift that fits the home realistically.
For readers who want to compare the full range after understanding the size logic, explore Cibes home lift models is the best next page.
Frequently Asked Questions (FAQs) on 41 Cibes Lift Sizes
What is the smallest Cibes home lift size?
The smallest listed V80 and V90 finished sizes start from 1000 x 900 mm, while the smallest V70 required cut-out is 1090 x 960 mm.
Does 1 square meter mean a lift will fit anywhere?
No. A compact footprint helps, but planning still depends on door approach, floor opening, travel height, landing clearance, and the model concept.
Which Cibes model is best if a home already has a shaft?
Cibes V70 is the most relevant starting point when a home already has a site-built or existing shaft.
Which Cibes model is best if there is no prepared shaft?
Cibes V90 is often the relevant starting point when a cabin-style lift is wanted without a prepared shaft, because it comes with a panoramic shaft concept. Cibes V80 for platform lift option.
Why is having 41 sizes better than having only a few standard sizes?
Because more size options improve the chance of matching the lift to the actual home layout, especially in tight or already-built villas.
Can a compact lift still feel comfortable?
Yes, depending on user needs. The right size is not always the biggest one. It is the one that fits the household and the layout properly.
Does lift size affect price?
Yes. Lift size can affect pricing along with model, stops, travel, shaft concept, and finishes.
