Outdoor Lift

Weather resistant lift

Our weather resistant outdoor lifts offer comfortable access to all floors and create a seamless flow between indoor and outdoor areas, that will make your interior feel more spacious.
wide range

All-inclusive lift concept

The lift is delivered in prefabricated modules with everything you need for installation, including a ready-made lift shaft in steel or glass.

easy update

Weather resistant lift

Our standard outdoor equipment ensures that our lifts are weather resistant: Anti-corrosive treatment of bottom frame and platform. Flood protected electrical compartment. Aluminium doors and weather resistant call buttons. Outdoor roof and door canopies.

colour choices

Space-efficient solution

Cibes outdoor lifts have minimal structural impact on your building and the passenger platform constitutes 70% of the total footprint of the lift. A great use of space!

gear true

Installation in 3-4 days

Our ready-made lift concept speeds up the installation and minimises the impact on your building.

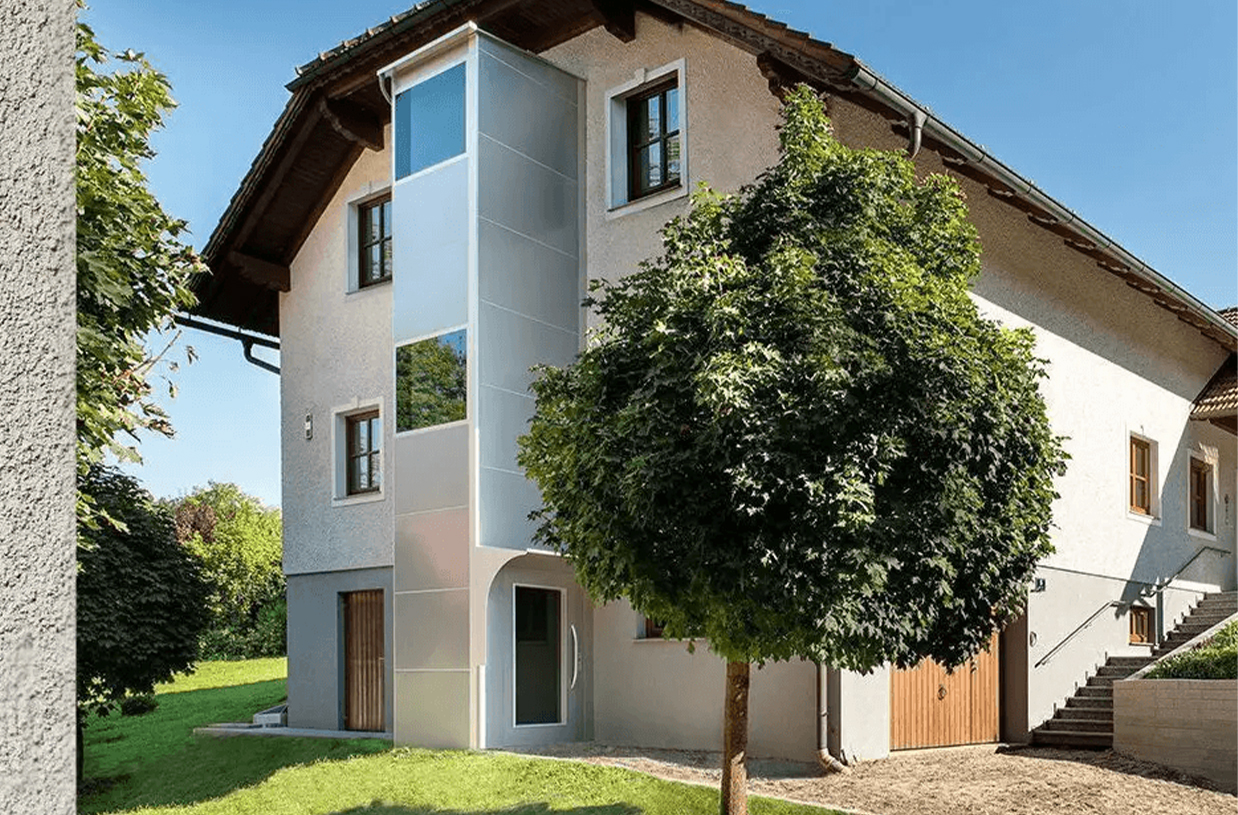

od 1

Weather resistant outdoor lift

The outdoor concept is available for platform sizes 1000×1467 and 1100×1467 mm and ensures that your lift is weather resistant.

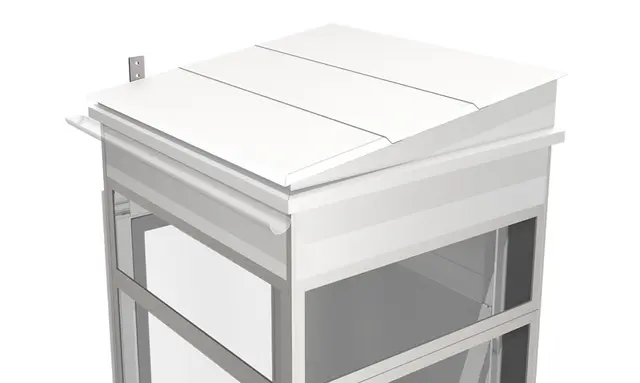

  • Slanted outdoor roof, protecting the lift from rain and snow.

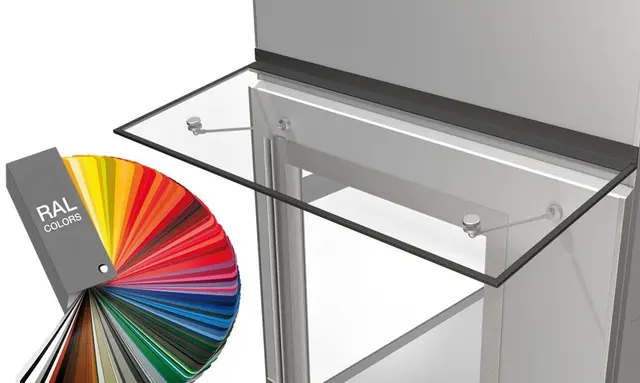

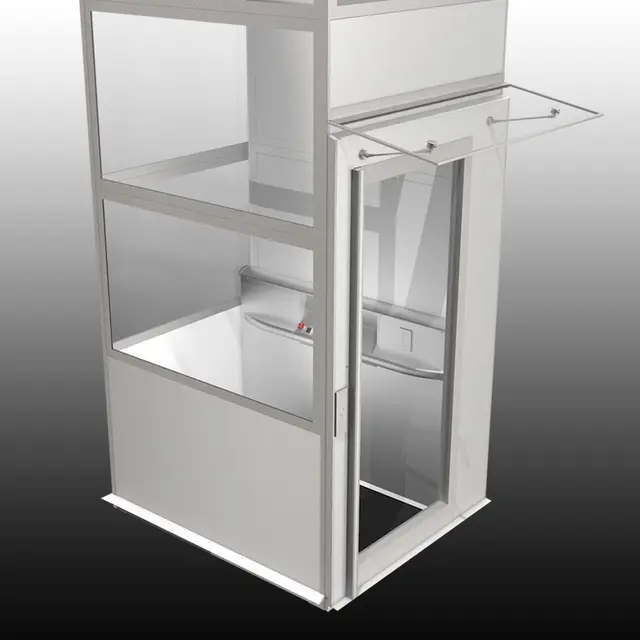

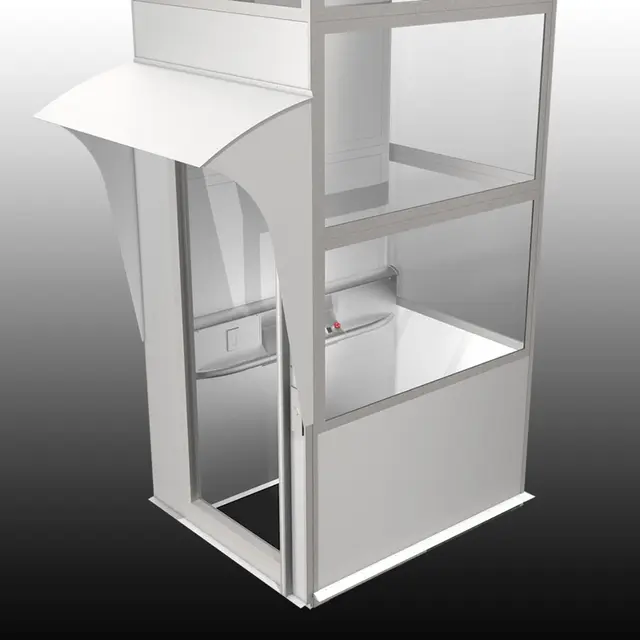

  • Door canopies in plexiglas or steel.

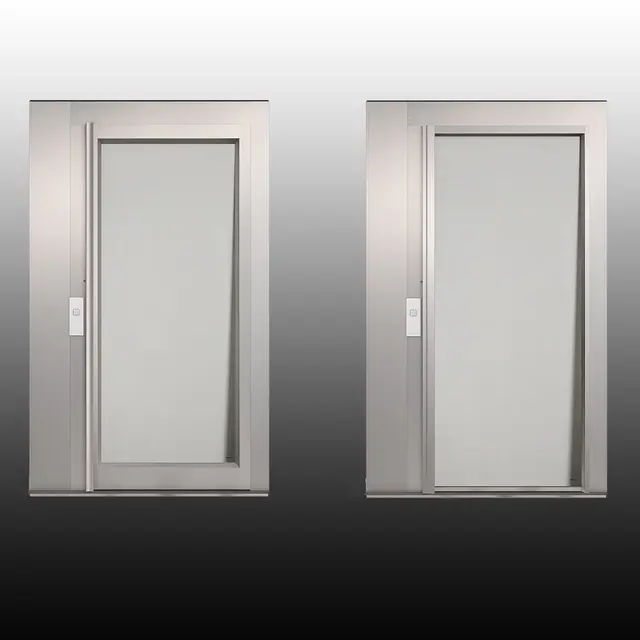

  • Elegant, rust proof aluminium doors.

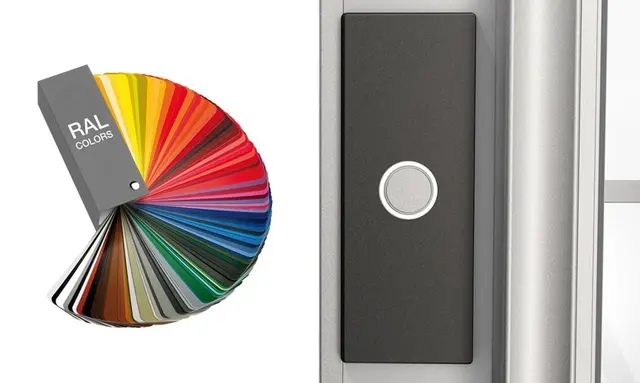

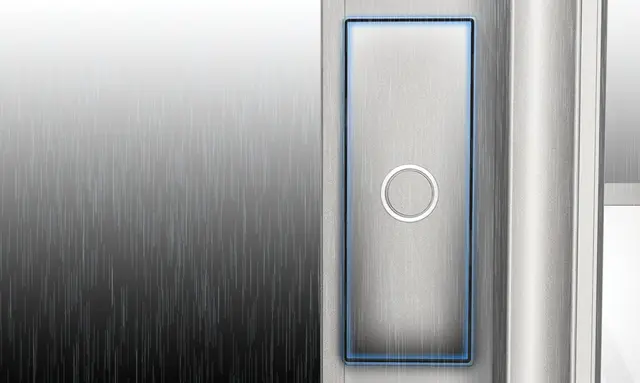

  • Sealed, weather resistant call buttons.

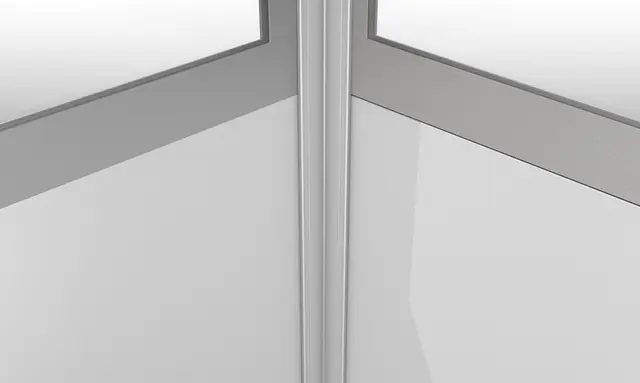

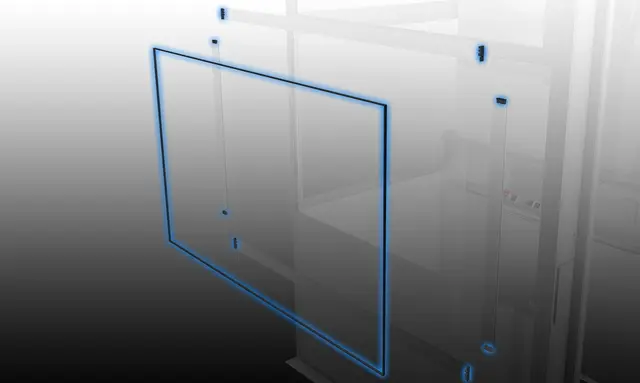

  • Sealed glazed shaft panels.
  • Bottom frame with anti corrosive coating.
  • Flood protected electrical compartment.
Our outdoor lifts are designed to function within a temperature span of approximately -10° to +30° Celsius. For more extreme climates, we offer additional options and solutions for temperature control.

Outdoor lift concept

Our outdoor lifts are equipped to resist hot and cold temperatures, rain and snow. Discover our weather resistant lift concept!

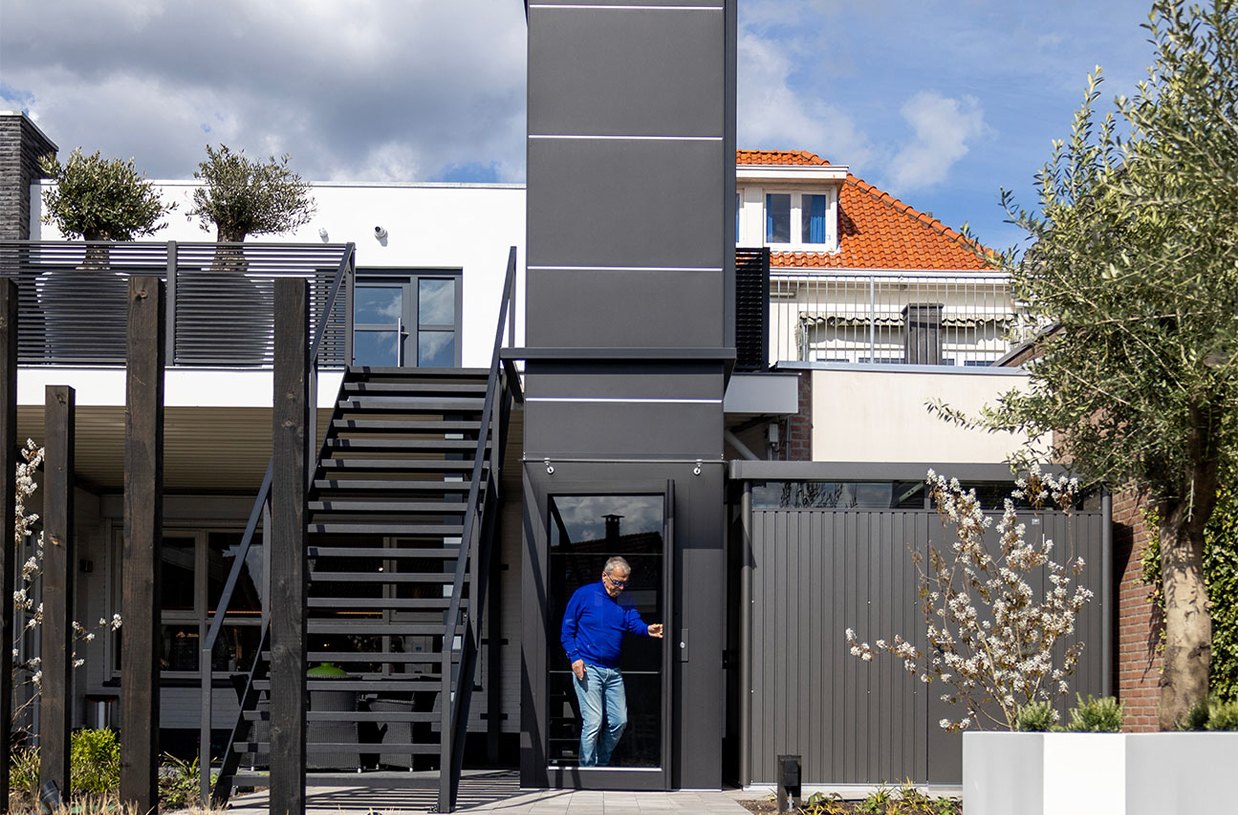

od 2

Outdoor equipment

od 3

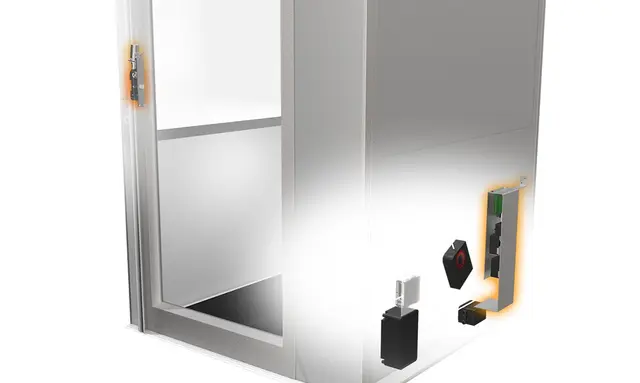

Solutions for temperature control

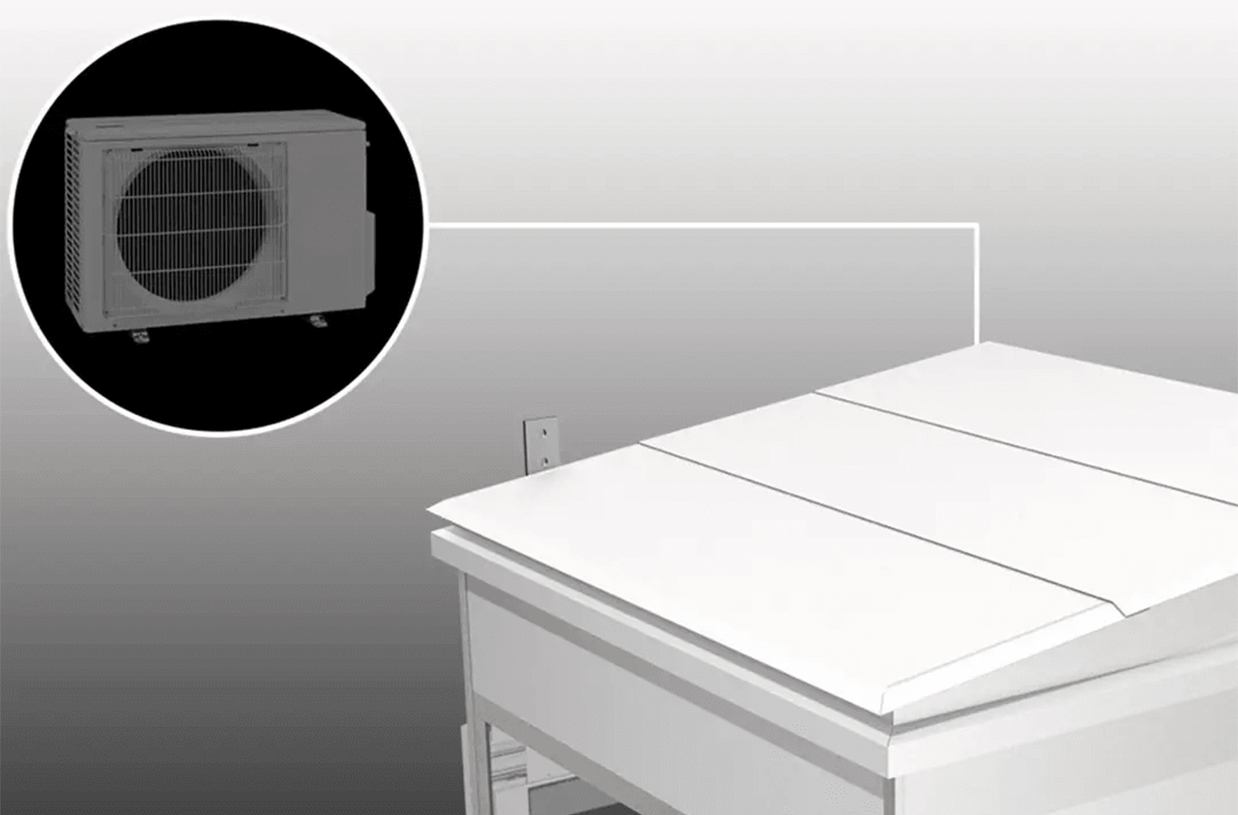

A/C ready If you live in a hot climate, adding an air conditioning system to your lift is a great way to ensure both passenger comfort and lift function. Cibes outdoor lifts are available A/C ready and the option includes a connection box to facilitate installation.

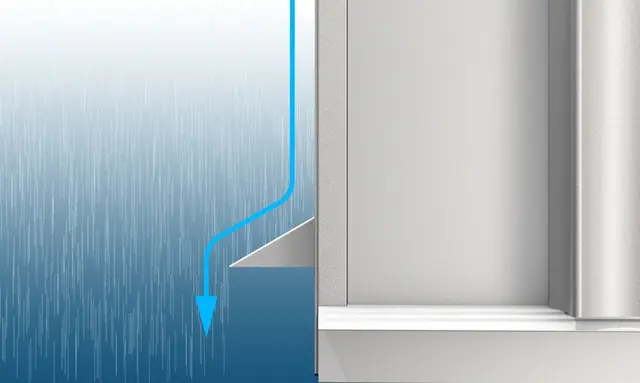

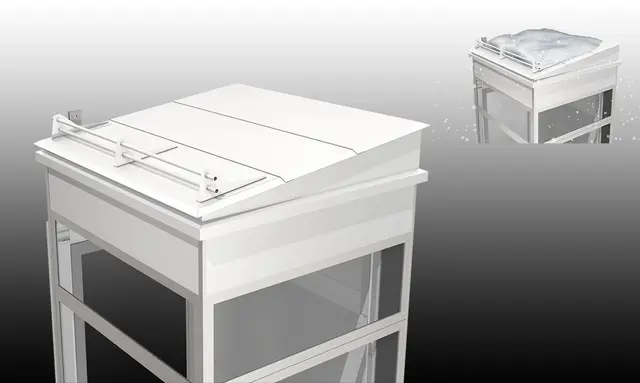

Solutions for rain & snow

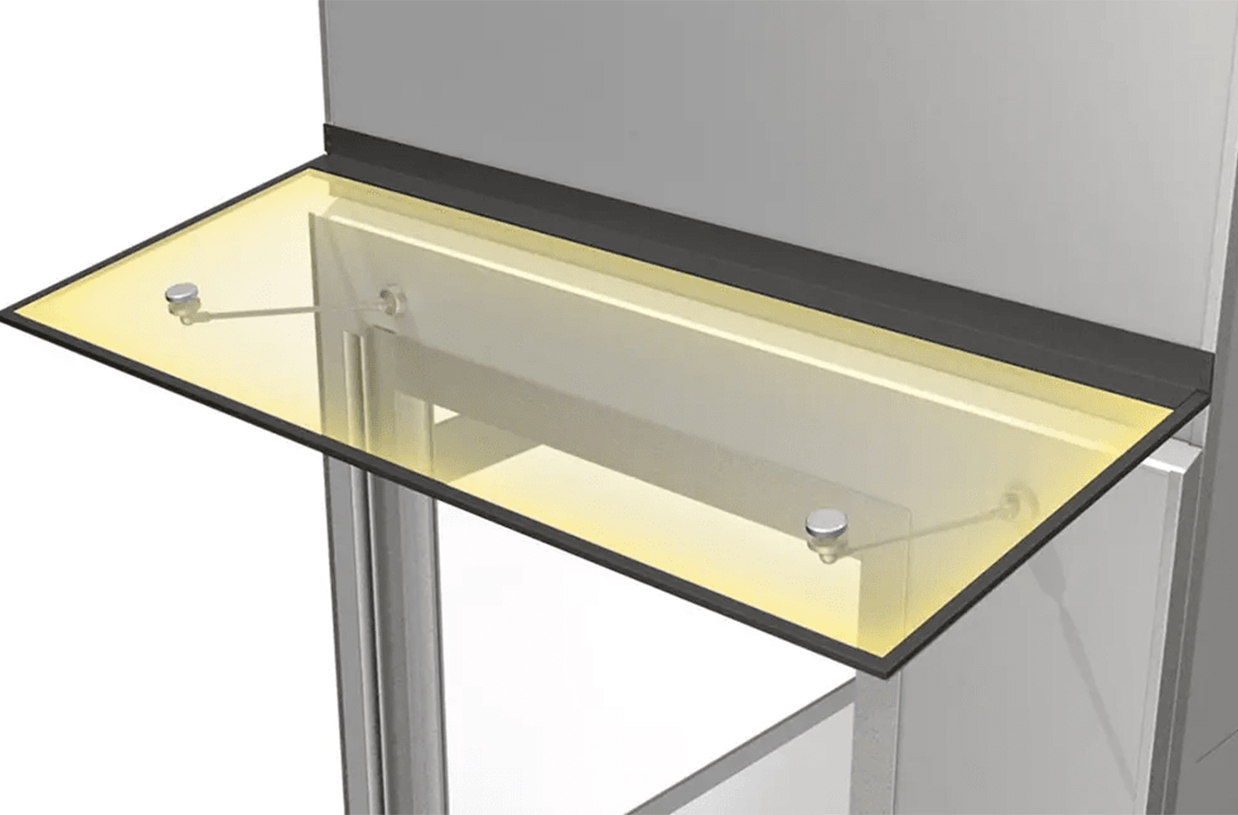

Additional light source

The LED lit canopy offers you a nice-looking lighting effect as well as a practical, additional light source at night-time.
od 4

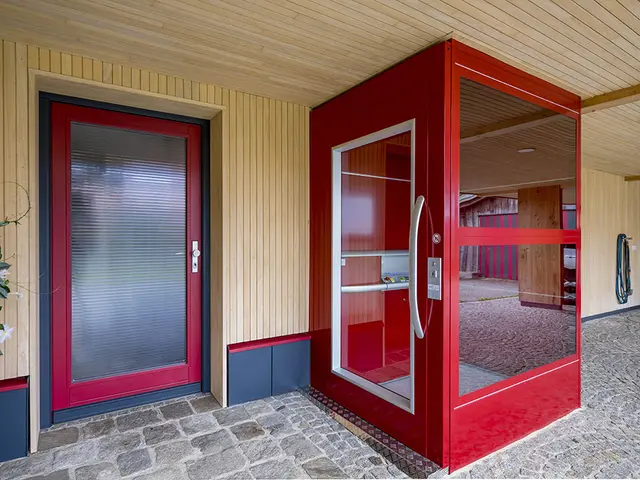

Style the lift to your building

The flexible design of Cibes outdoor lifts is easy to adapt to different applications and architectural styles. You just decide what you want your lift to look like and we make sure that you get a lift with the options and accessories to suit your needs.

Specifications and model
details

Technical
information

Complete specifics and lift sizes

Check out the full Complete specifications and model details of Cibes Cloud Plus.

Read more

Installation: Outdoor

Rated load : 400/500 kg​

Power supply : 1 × 230 VAC/3 × 230 VAC/3 × 400 VAC, 50 Hz, 16 A, 3 × 2,5 mm²​

Speed : Max 0.15 m/s​

Min headroom​ : Depends on lift configuration​

Lift pit : 50 mm (70 mm if the floor is fitted with wood laminate or tiles)​

Drive system​ : Screw and nut​

Max travel​ : 13 m​

Max number of stops​ : 6

Lift controls​​ : One touch (automatic drive)

Motor Power​ : 2.2 kW​

Machine room​ : None (Integrated solution)​

Door configuration​​ : Single access, open-through, adjacent​

Directives and standards​ : MD 2006/42/EC, EN 81-41​
