Cibes Mega
Heavy-Duty Lifting Made Simple
The Cibes Mega is a heavy-duty platform lift designed for transporting large goods, equipment, and passengers. With a rated load capacity of 1,000 kg and generous platform dimensions, it provides a practical solution for warehouses, retail spaces, industrial facilities, offices, and other commercial buildings.
Unlike goods-only lifts, the Cibes Mega is certified for transporting both goods and passengers, allowing personnel to accompany cargo during travel. Its compact, modular design also helps simplify installation, making it suitable for new developments and existing buildings.
1,000 kg Load Capacity
Built for demanding applications, the Cibes Mega handles loads of up to 1,000 kg. From moving heavy equipment and stock to transporting large items between floors, it provides a versatile lifting solution for commercial and industrial environments.
Installation in 5-10 days
The Cibes Mega features a prefabricated modular design that enables efficient on-site assembly. Installation can be completed in approximately 5-10 days once the site is prepared, helping reduce disruption to daily business operations.
Minimal Structural Modifications
With a shallow lift pit, low headroom requirements, prefabricated shaft, and integrated drive system, the Cibes Mega can be installed without the extensive structural work often associated with conventional elevators.
Space-Efficient Lift Design
The platform occupies approximately 70% of the lift's total footprint, maximizing usable space for passengers and cargo. This efficient design makes the Cibes Mega suitable for buildings where installation space is limited.
Designed for Heavy Loads
Combining the lifting capacity of a heavy-duty goods lift with the space-saving benefits of a platform lift, the Cibes Mega is designed to support demanding daily operations.
With a rated load of 1,000 kg, it can accommodate bulky goods, equipment, trolleys, and pallet trucks within its specified dimensions and load limits. Integrated safety edges and protective systems help safeguard passengers, cargo, and lift components during operation.
Whether installed in a warehouse, retail store, office building, or industrial facility, the Cibes Mega provides a practical solution for moving heavy loads between floors.
Extra-Wide Lift Doors
Moving large or bulky items requires convenient access. The Cibes Mega offers a selection of wide door configurations, with clear opening widths ranging from 1,000 to 1,300 mm, depending on the selected lift size.
These generous openings make loading and unloading easier, particularly when transporting large equipment, roll containers, trolleys, and other goods.
A Goods Lift Suitable for Passengers
The Cibes Mega goes beyond conventional goods transport. Certified for both goods and passengers, it can accommodate groups of approximately 8–10 people, depending on the configuration and total load.
This dual-purpose design allows personnel to accompany cargo and provides convenient vertical access in commercial buildings, offices, warehouses, and other facilities requiring both passenger and goods transportation.
Suitable for Demanding Environments
The Cibes Mega offers a selection of durable materials and practical accessories designed to withstand frequent use in busy commercial and industrial environments.
From reinforced flooring to protective door finishes, these options help reduce everyday wear while maintaining a functional and professional appearance.
EI60 Fire-Rated Lift Doors
Choose between standard steel doors and optional EI60 fire-rated door configurations. Available with a small vision panel or panoramic glazing, these doors provide additional fire-resistance performance for suitable building application
Hard-Wearing Flooring
For environments with frequent goods movement, optional aluminum checker plate flooring provides a durable, wear-resistant surface designed to withstand demanding daily use.
Raised Platform Edges
Optional raised platform edges provide additional protection for the lift shaft walls, helping reduce accidental contact and damage when moving trolleys, pallet trucks, and other wheeled equipment.
Stainless Steel Kick Plates
Protect lift doors against everyday wear with stainless steel kick plates. These durable protective panels help minimize dents, scratches, and damage caused by frequent loading and unloading.
FEATURES

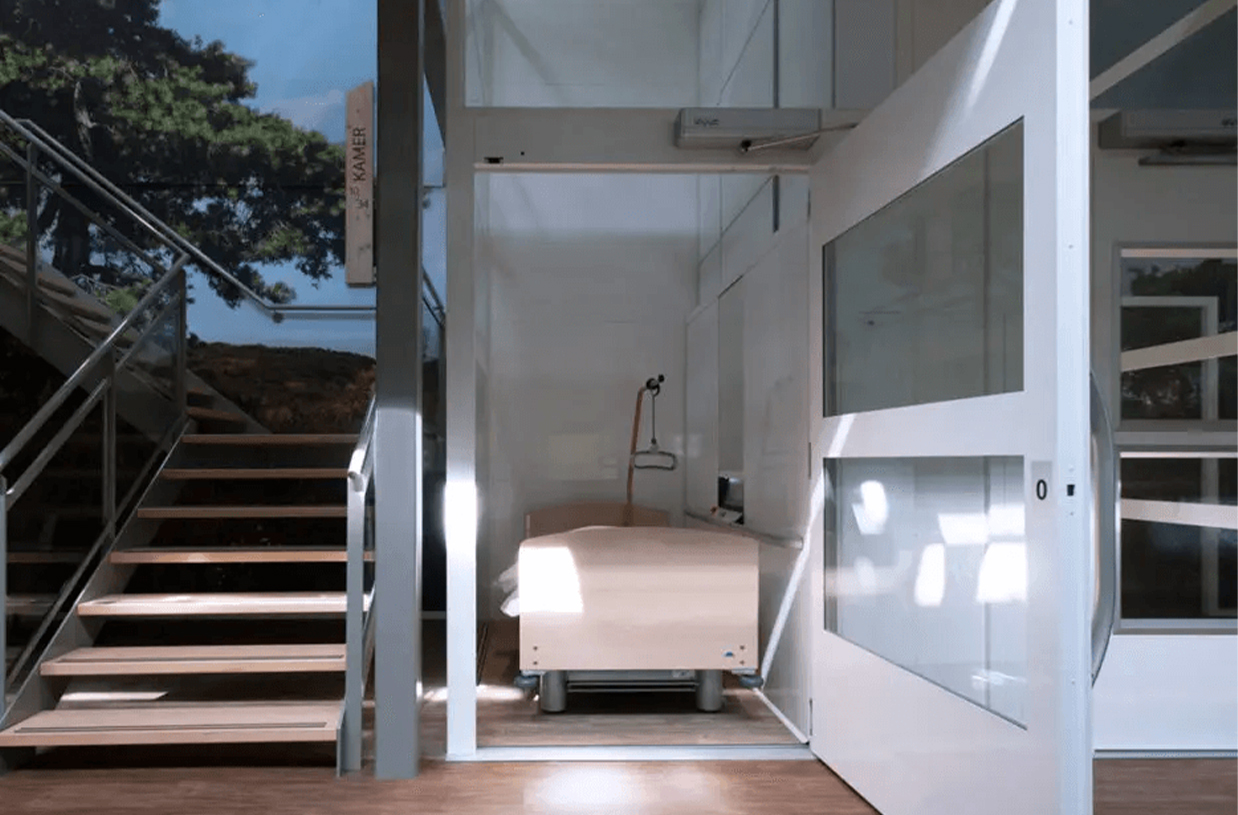

Bed and Stretcher Lift
With its generous platform dimensions, 1,000 kg rated load, and compact modular construction, the Cibes Mega can also provide a practical solution for transporting hospital beds, stretchers, and accompanying personnel.
Its space-efficient design and limited structural requirements make it an option worth considering for healthcare facilities, nursing homes, and care centers where suitable vertical access is required.
Platform dimensions, access arrangements, and applicable healthcare requirements should be considered when selecting the appropriate configuration.

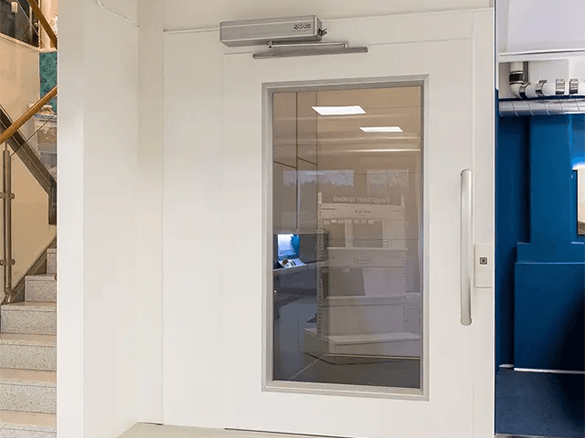

Machine-Room-Less Design
The Cibes Mega uses a screw-and-nut drive system, with the machinery and electrical components integrated into the lift structure. This eliminates the need for a separate machine room and helps maximize available building space.

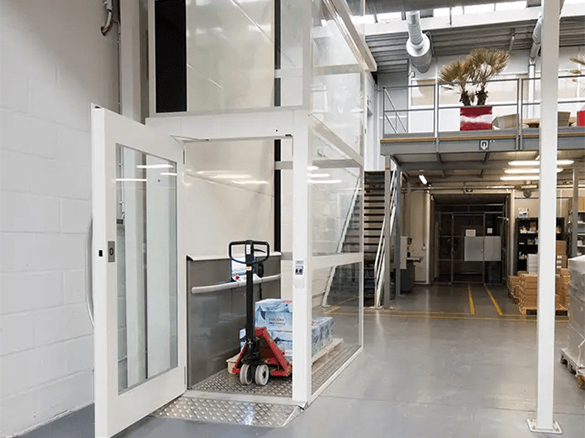

130 mm Lift Pit
The Cibes Mega requires a shallow pit of just 130 mm, reducing the need for extensive excavation. Alternatively, it can be installed directly on an existing floor with a suitable access ramp.

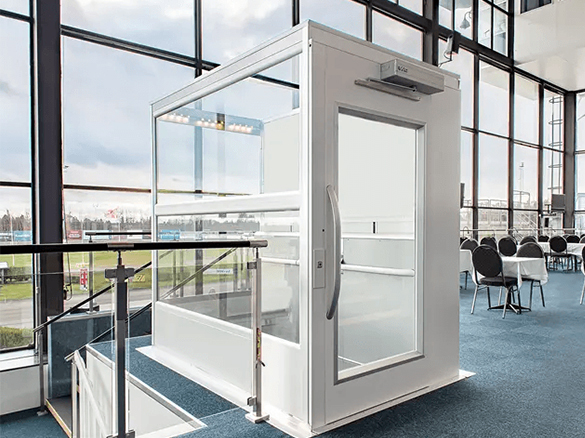

2,350 mm Headroom
Thanks to its compact engineering and integrated drive system, the Cibes Mega requires only 2,350 mm of headroom at the top landing, making it suitable for many buildings with limited overhead space.
Specifications and
model
details
Technical
information
Complete specifics and lift sizes
Check out the full Complete specifications and model details of Cibes Cloud Plus.
Installation: Indoor
Rated load : 1000 kg
Power supply : 3 × 400 VAC/3 × 230 VAC/, 50 Hz, 16 A, 5 × 6,0 mm²
Speed : Max 0.15 m/s
Min headroom : Top floor 2350 mm
Lift pit : 130 mm or 0 mm with access ramp
Drive system : Screw and nut
Max travel : 13 m
Max number of stops : 6
Lift controls : One touch (automatic drive)
Motor Power : 4.0 kW
Machine room : None (Integrated solution)
Door configuration : Single access, open-through, adjacent
Directives and standards : MD 2006/42/EC, applicable parts of EN 81-41
